Description:

Description:

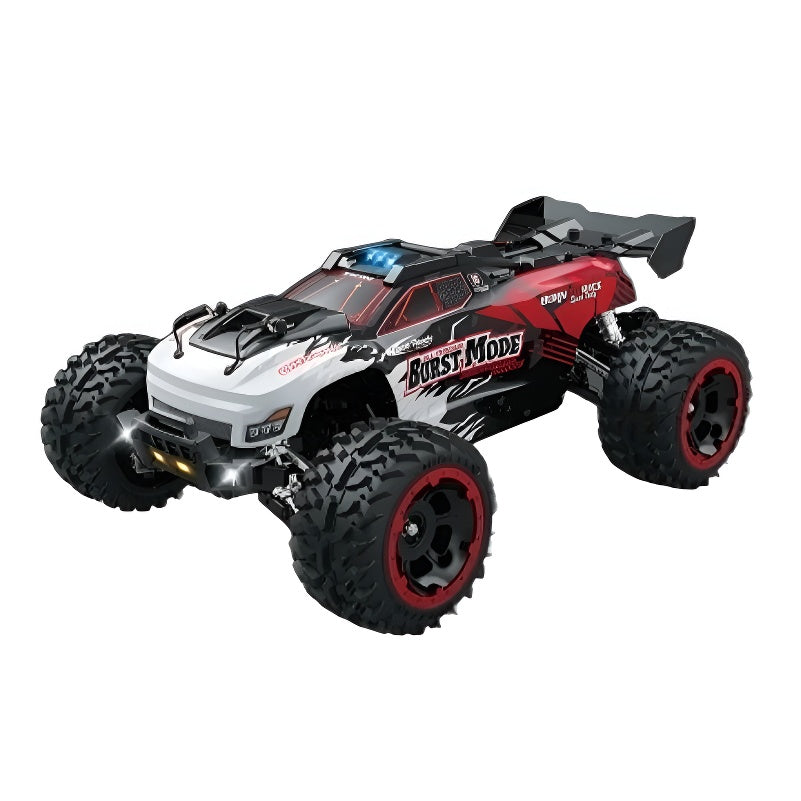

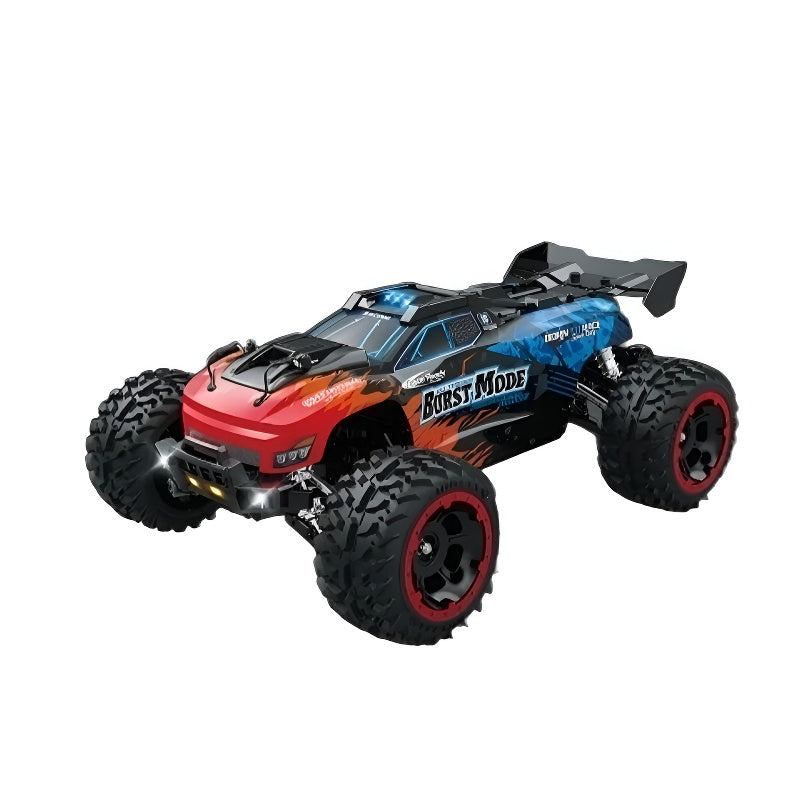

• Product Name: 1/10 Off-road RC Car;

• Applicable Brands: SUCHIYU;
• Product Dimension: 43(L)x30(W)x15.5(H)cm;

• Product Colors: Red;

• Motor: 550 Brushed Motor;

• Servo: 3-wire 6kg Servo;

• ESC: 2S 60A Brushed ESC;

• Remote Control: 2.4G;

• Remote Control Time: 12 minutes;

• Charging Time: 4-4.5h;

• Battery: 7.4V 2300mAh Battery;

• Remote Control Distance: about 100 meters
• Speed: 33km/h

Other Equipment Description:

• Wheelbase: 270mm

• Track Width: 245mm

• Tire Specs: Diameter 110mm, Width 60mm

• Ground Clearance: 40mm

• Gear Ratio: 1:11.15

Chassis & Suspension

• Chassis Material: PA Nylon

• Drive Components: Medium carbon steel front CVD universal joints, medium carbon steel rear drive bones, medium carbon steel wheel hubs, medium carbon steel differential cups

• Shock System: Adjustable aluminum hydraulic oil shocks

• Suspension Structure: Double wishbone independent suspension

• Body Structure: Aluminum I‑shaped upper deck, aluminum chassis reinforcement plates, zinc alloy suspension mounts, medium carbon steel central drive shaft

• Steering Parts: Zinc alloy steering knuckles

• Bearing Setup: 26 ball bearings installed throughout the vehicle

• Differential Structure: Fully sealed powder metallurgy planetary gear differential

• Drive Type: Full-time 4WD
• Gear Specs:
  Powder metallurgy motor gear: 13T (0.8 module)
  Powder metallurgy main gear: 58T (0.8 module)
• Tire Configuration: TPR rubber tires with foam inserts, equipped with 12mm zinc alloy wheel hex adapters

Package Included:

• 1x SUCHIYU 10101;
• 1x Transmitter
• 1x Manual
