Description:

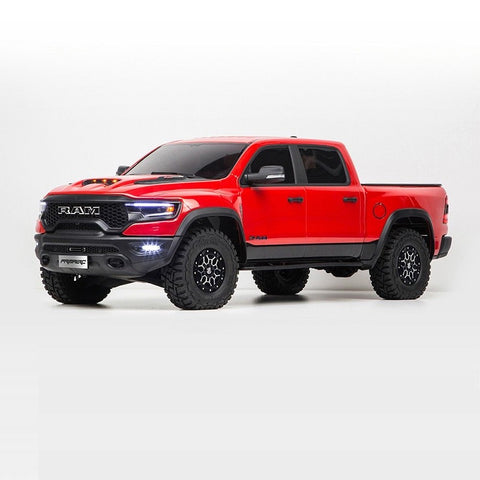

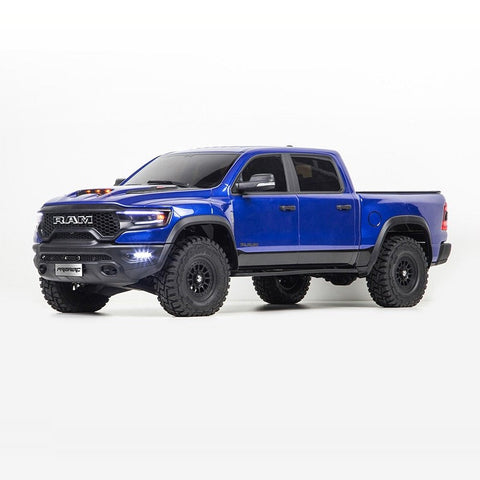

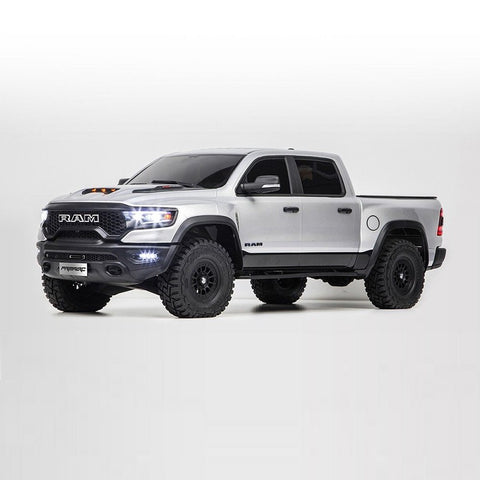

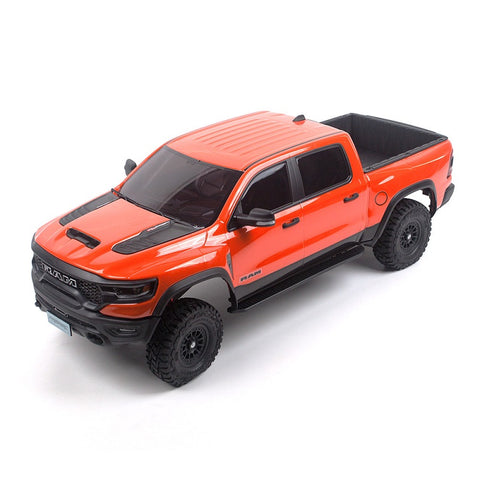

Images of Traction Hobby RAM 1500 RC Car

Description of Traction Hobby RAM 1500 RC Car:

Product Brand: Traction Hobby;
Product Name: 1/8 Off-road RC Car (Truck with Independent Front Suspension and Solid Rear Axle);
Product Dimension: 74.3x32.3x26.2cm;
Product Colors: Red, Blue, Silver, Orange;
Product Version: Brushed Version and Brushless Version;

Body Description of Traction Hobby RAM 1500 RC Car:

Wheelbase: 463mm
Track Width: 222mm
Minimum Ground Clearance: 39mm
Approach Angle: 32°
Breakover Angle: 32°
Departure Angle: 26°
Curb Weight: 10.6kg
Compatible Motor: Diameter ≤ 46mm, Length ≤ 75mm
Motor Pinion Gear: Stock 14T, Adjustable Backlash, Compatible with 12–20

Traction Hobby RAM 1500 Transmission Specification:

Integrated Transmission: All-in-one unit integrating 2-speed, reverse drive, FWD, RWD, 4WD and 4-output functions
2-speed: Metal Gear, High-Voltage & Splash-Proof Servo
Servo: Metal Gear, High-Voltage and Splash-Proof

Traction Hobby RAM 1500 Steering Assembly:

Multi-link Steering Mechanism: Full Metal CNC Machined
Metal Servo Horn (25T): Full Metal CNC Machined
Pull-type Servo:

• Brushed Version: TH1333 Digital Coreless Servo

• Brushless Version: TH1333 / 6V / 33KG Digital Coreless Servo

Traction Hobby RAM 1500 Body Structure:

Chassis Frame: 1.5mm Steel C-Channel Frame
Drive Mode: Part-Time 4WD
Suspension Type: Independent Front & Solid Rear Axle (Steel Tie Rods)
Transmission System: Full Metal Gears, 7mm Full Metal Drive Shafts
Front Shock Type: 81mm Full Metal Coilover Shocks
Rear Shock Type: 93mm Full Metal Horizontal Coilover Shocks
Drive Shafts: Full Metal Drive Shafts
Axles: Independent Front & Solid Rear (Differential Lock Compatible), Nylon Axles + CNC Axle Housing Covers
Body Realism: Foldable Side Mirrors, Simulated Light Kit, Wipers, Door Handles, Rear Bucket, Simulated Interior Trim, etc.
Wheel Rim Specs:

• Brushed Version: Nylon Rims;

• Brushless Version: CNC T-Rex Stock Rims;

Tires: Off-Road Tires (Outer Diameter 115mm, Width 42mm)

Traction Hobby RAM 1500 Electronic Configuration:

Transmitter:

• Brushed Veriosn: DumboRC DDF-350, 10-Channel LCD Transmitter

• Brushless Version: FS-G7P+, 10-Channel with Gyro Receiver

ESC:

• Brushed Version: Hobbywing 880 (BEC 7.4V), Custom High-Voltage Splash-Proof ESC
• Brushless Version: Hobbywing Fusion 8IGHT RTR (1800KV)

Motor:

• Brushed Version: Brushed 775 Motor

• Brushless Version: Hobbywing Fusion 8IGHT RTR (1800KV)

Steering Servo:

• Brushed Version: TH1435HV High-Voltage Digital Servo

• Brushless Version: TH1333 / 6V / 33kg Digital Coreless Servo

Function Servo: TH1036HV High-Voltage Digital Servo

Light Kit: Simulated Light Kit, Combination of SMD Light Kit + LED Light Kit

Notice:

Traction Hobby RAM 1500 is an 1/8 scale remote-controlled vehicle. Players should be absolutely certain of their purchase before committing, as refunds will incur a 50% restocking fee.

Package Included:

• 1x Traction Hobby RAM 1500 RC Car

• 1x Remote control

• 1x Manual
• 1x USB Charger

(without original box)

If you want the original packaging, there is an additional shipping cost, contact me if you need it.

Image about Traction Hobby RAM 1500 RC Car:
